Carnaby CaravansEST 1976

Bayview

TAKE A CLOSER LOOK - MODERN AND SOPHISTICATED WITH CLEAR CARNABY STYLING.

Floor Plans

Down arrow, click to expand menu
Overview
Features
Floor plans
Finishes

Floor Plans

Available in 5 Sizes

28 x 12 - 2 Bedroom

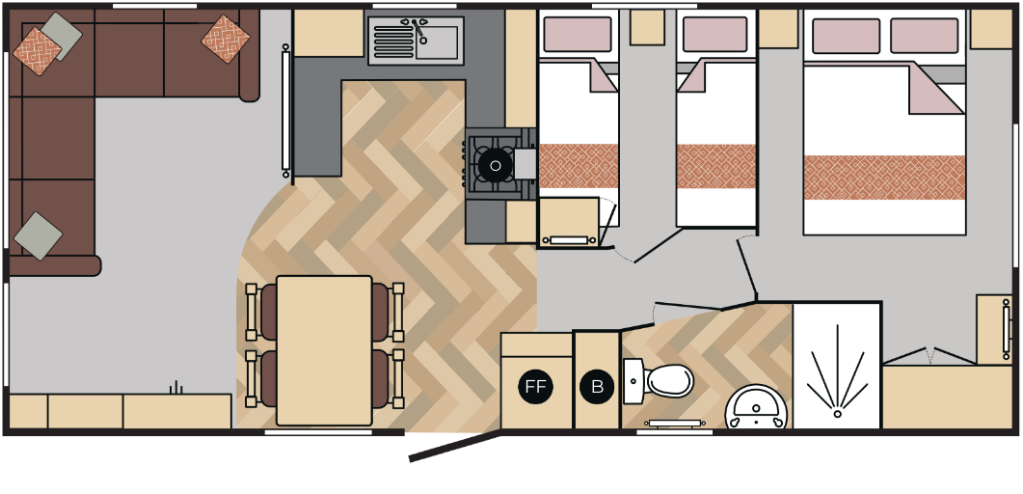

28x12 2 Bedroom Floor Plan

Bed Sizes: Double 1905mm x 1370mm & 2 x Single 1830mm x 685mm

OvenOven
BoilerBoiler
Fridge FreezerFridge Freezer

* Optional extra

External Sizes

Overall Length including tow bar

10.35M

Overall roof length including gutters

9.66M

Body length including bay

9.55M

Body length at floor level

9.25M

Overall width inc. gutters / plastic front

4M

Overall body width

3.68M

Overall height inc. flues

3.47M

Height to ridge

3.47M

Weight (kg)

3820*

* For CanExel cladding add 500Kg | All model weights are inclusive of wet radiator heating systems.

30 x 12 - 2 Bedroom

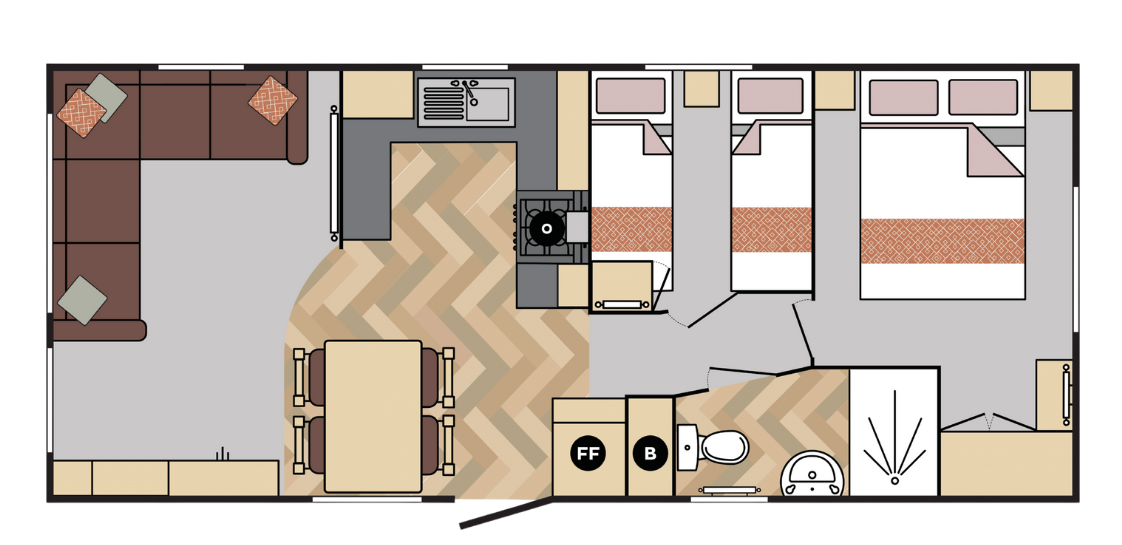

30x12 2 Bedroom Floor Plan

Bed Sizes: Double 1905mm x 1370mm & 2 x Single 1830mm x 685mm

OvenOven
BoilerBoiler
Fridge FreezerFridge Freezer

* Optional extra

External Sizes

Overall Length including tow bar

10.35M

Overall roof length including gutters

9.66M

Body length including bay

9.55M

Body length at floor level

9.25M

Overall width inc. gutters / plastic front

4M

Overall body width

3.68M

Overall height inc. flues

3.47M

Height to ridge

3.47M

Weight (kg)

3820*

* For Timber and CanExel cladding add 500Kg | All model weights are inclusive of wet radiator heating systems.

35 x 12 - 2 Bedroom

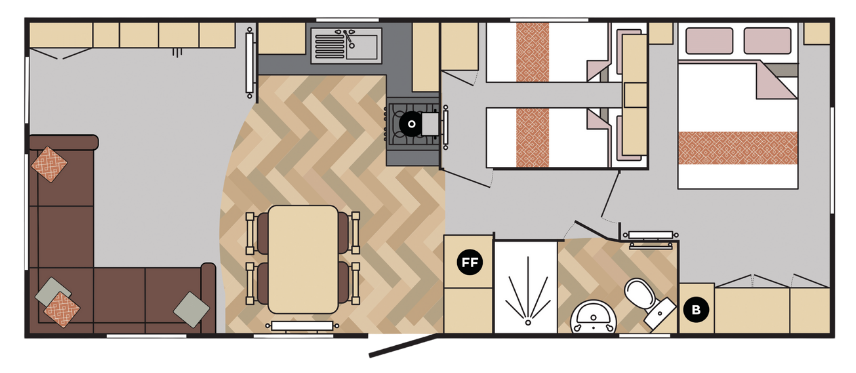

35x12 2 Bedroom Floor Plan

Bed Sizes: King Size 1905mm x 1525mm, 2 x Single 1830mm x 685mm

OvenOven
BoilerBoiler
Fridge FreezerFridge Freezer
MicrowaveMicrowave*
DishwasherDish Washer*

* Optional extra

External Sizes

Overall Length including tow bar

11.77M

Overall roof length including gutters

11.08M

Body length including bay

10.97M

Body length at floor level

10.67M

Overall width inc. gutters/plastic front

4M

Overall body width

3.68M

Height

3.47M

Weight (kg)

4230*

* For CanExel cladding add 500Kg | All model weights are inclusive of wet radiator heating systems.

36 x 12 - 3 Bedroom

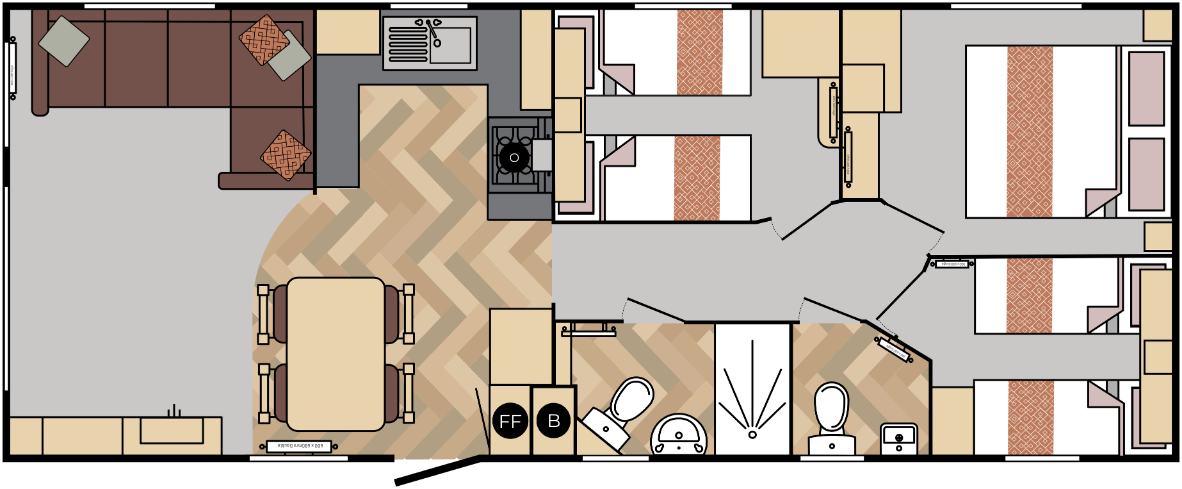

36x12 3 Bedroom Floor Plan

Bed Sizes: Double 1905mm x 1370mm, 2 x Single 1830mm x 685mm & 2 x Single 1830mm x 610mm

OvenOven
BoilerBoiler
Fridge FreezerFridge Freezer
MicrowaveMicrowave*
DishwasherDish Washer*

* Optional extra

External Sizes

Overall Length including tow bar

11.77M

Overall roof length including gutters

11.08M

Body length including bay

10.97M

Body length at floor level

10.67M

Overall width inc. gutters/plastic front

4M

Overall body width

3.68M

Height

3.47M

Weight (kg)

4230*

* For CanExel cladding add 500Kg | All model weights are inclusive of wet radiator heating systems.

38 x 12 - 3 Bedroom

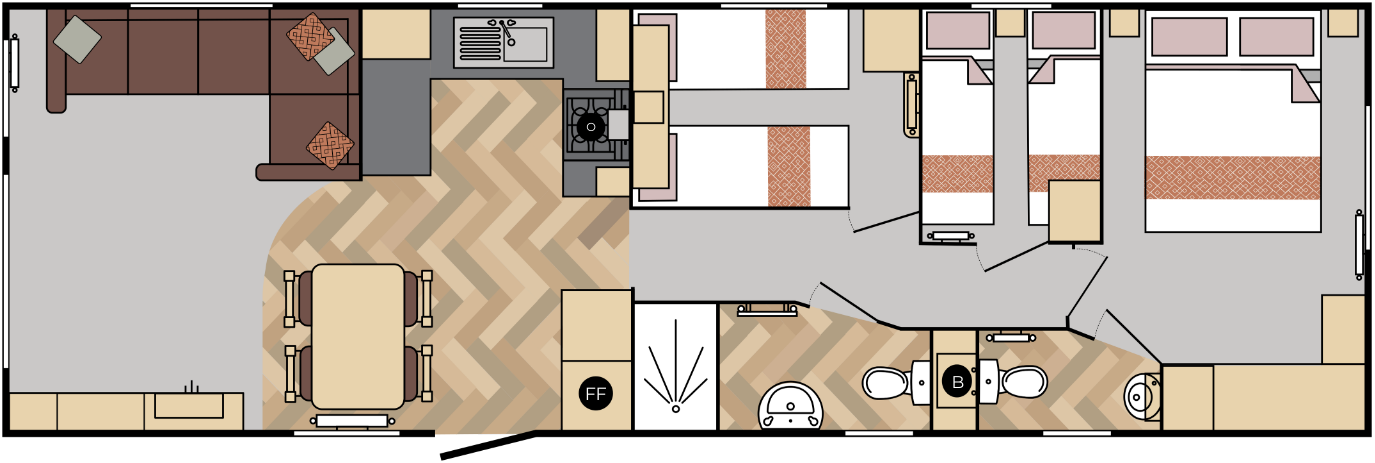

38x12 3 Bedroom Floor Plan

Bed Sizes: King Size 1905mm x 1525mm, 2 x Single 1830mm x 685mm & 2 x Single 1830mm x 610mm

OvenOven
BoilerBoiler
Fridge FreezerFridge Freezer
MicrowaveMicrowave*
DishwasherDish Washer*

* Optional extra

External Sizes

Overall Length including tow bar

12.78M

Overall roof length including gutters

12.09M

Body length including bay

11.98M

Body length at floor level

11.68M

Overall width inc. gutters/plastic front

4M

Overall body width

3.68M

Height

3.47M

Weight (kg)

4775*

* For CanExel cladding add 500Kg | All model weights are inclusive of wet radiator heating systems.
